Physics


Hardware

The standard system consists of a bench top electronic system, a small magnet and a sample stage for room temperature and LN2 measurements.

The electronics include the current source, the voltage measurement part, the contact switching module, the magnet power supply and the IEEE or RS232 interface. It is completely micro processor controlled.

The contact switching module is designed to allow all possible measurement configurations.

The current source has adjustable limits for voltage and/or power. {+++}

Voltage measurement provides different input amplifiers optimized for either low current or low voltage applications.

images/hall4s.gif

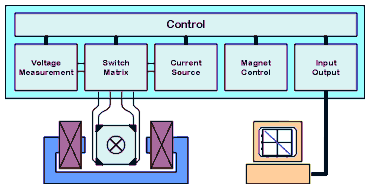

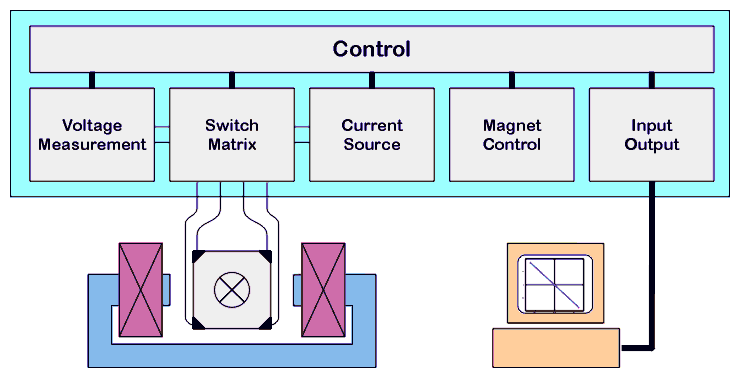

Set-up of the RH 2010 Hall Effect Measurement System
(Click for a larger image)


Principles Software Hardware Specifications
